ASTM A554, JIS G3446, CNS 5802 Stainless Steel Slot Tubes

ASTM A554, JIS G3446, and CNS 5802 tubes are excellent structural stainless steel tubes for using in ornamental, structural, exhaust, and other applications where appearance, mechanical properties or corrosion resistances are required.

Quick Inquiry

Details

ASTM A554, JIS G3446, and CNS 5802 stainless steel weld tubes are versatile structural materials ideal for ornamental, structural and other applications demanding aesthetic appeal, robust mechanical properties, or superior corrosion resistance.

What Are Stainless Steel Slot Tubes?

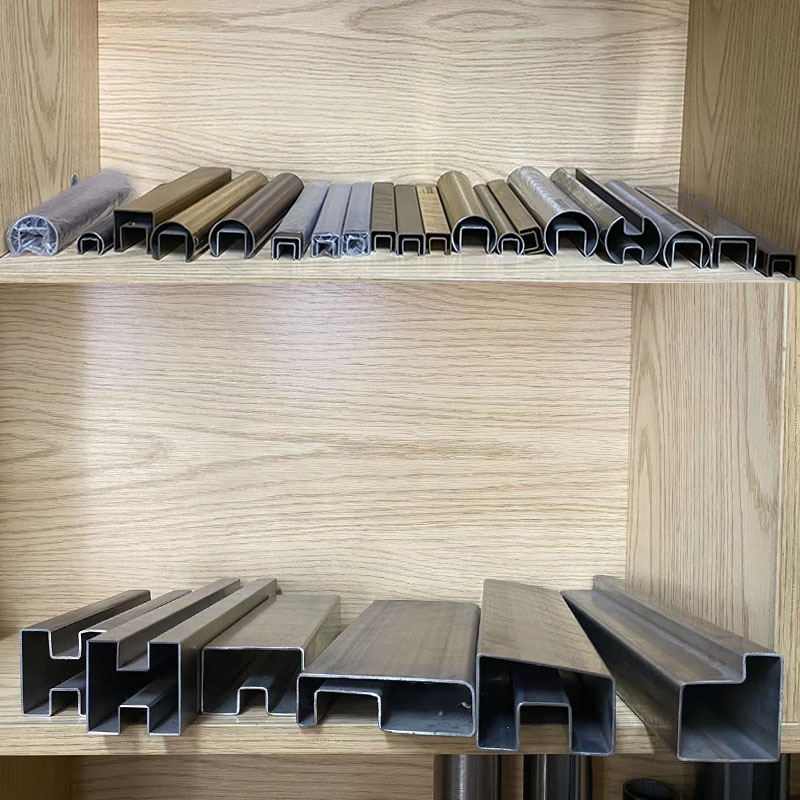

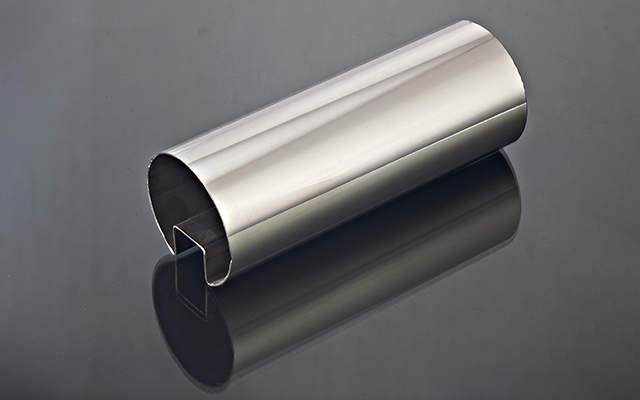

Slot tubes, sometimes known as slotted profiles or U-shaped tubes, are specially designed stainless steel tubes with a narrow groove (or “slot”) running along one side. This slot holds glass panels firmly in place – typically used in handrails, balustrades, staircases, balconies and shower enclosures.

At E-PAI, we offer a range of slotted tube profiles in 304 and 316 stainless steel, ensuring corrosion resistance for both indoor and outdoor use.

*Precise size, thickness tolerance size can be controlled to within 0.05mm

Type	Shape	Size(mm)	Slot Width x Depth(mm)	Type	Shape	Size(mm)	Slot Width x Depth(mm)
Round	Single Slot	∅25.4	14x14	Square & Rectangular tube	Single Slot	25x21	14x14
		∅28	5x5			31.8x31.8	15x15
		∅31.8	13x15 18.5x15			32x32	15x5
		∅38.1	15x15 19x23 23.5x13			38x25	20x15
		∅42.4	15x15 19.7x26.2 20x15 24x24			38x38	15x15
		∅42.4	15x15 19.7x26.2 20x15 24x24			40x40	15x15 20x20
		∅48.3	19.7x31.8 24x24 27x30 30x27			40x60	15x15
		∅48.3	19.7x31.8 24x24 27x30 30x27			50x50	15x15 20x20
		∅50.8	13.8x15 15x15 19x38 19.7x31.8 20x20 20x25 25x25 28x21			50x25	15x15 25x15
						60x40	15x15 24x24
						60x60	25x25
						75x45	20x25 25x25 35x28
		∅60	25x25 25x40			70x30	42x6
		∅60.3	20x20 34x34			71x26	15x12
		∅63	15x15 19x38 20x20 23x34 25x25			100x30	34x19
					Double Slot	40x40	15x15
						48x85	25x13 25x20
		∅76	25x25 38x45			50x50	15x15
		∅90	57x35	Oval Tube	Single Slot	60x40	20x20
	Double Slot	∅50.8	15x15			87x65	24x28
		∅60.3	20x20			80x40	24x24 33x26
		∅63.5	15x15 20x20 25x25			93x57	25x25
		∅63.5	15x15 20x20 25x25			100x52	45x40
		∅76.2	25x25			110x40	33x26

Application

Cost-effective and durable, stainless steel tubes are widely used in residential, commercial, and industrial projects. Their applications are diverse, including:

Railing Post
Handrail
Structural components
Furniture

By combining these qualities with their affordability, stainless steel tubes provide an excellent solution for a variety of applications.

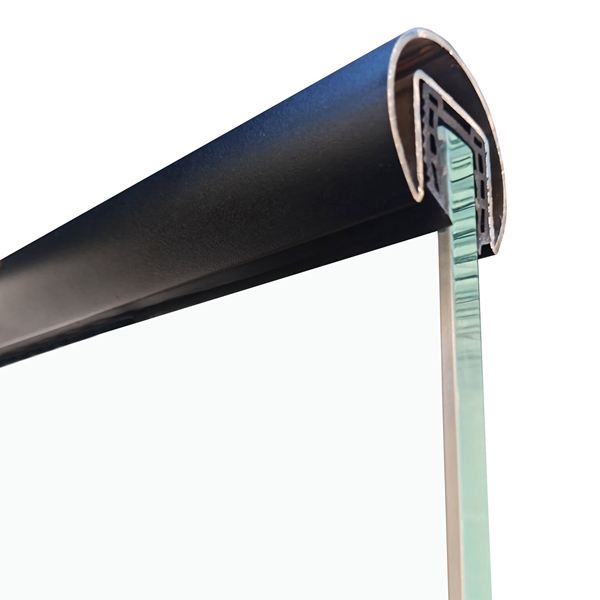

Slot tube for railing post Slot tube for handrail

E-Pai Manufacturer

E-Pai is a global leader in the manufacturing of stainless steel pipes and tubes. Our dedicated team of manufacturing and engineering experts delivers products of exceptional and consistent quality to clients worldwide.

We prioritize customer satisfaction, offering prompt after-sales services and punctual delivery times to streamline inventory management. Our products adhere to industry standards, with specific tolerance requirements available upon request. We also accommodate specific mechanical testing needs through direct negotiation with our clients.

To ensure safe and efficient transportation, we offer flexible packaging options, including bundle packing and steel crate packing, tailored to client preferences. Additionally, we are open to discussing supplementary requirements to meet specific project needs.
